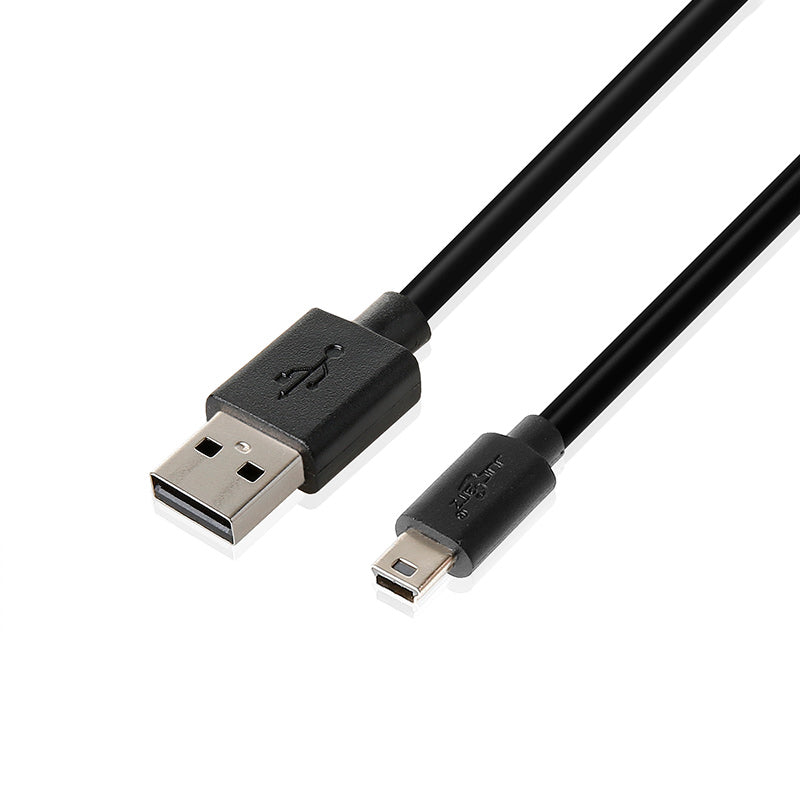

USB 2.0 Type A Male to Mini USB (Mini-B) 22AWG Charger & Data Cable - Black
Our USB 2.0 Type A Male to MINI B High Speed 480Mbps Data Sync Charger Cable is strong, versatile and compatible with the latest cameras, satellite navigation systems, dash cams and more.
Universally Compatible - 2.4A Charger Cable (USB Type A Standard to Mini-B).

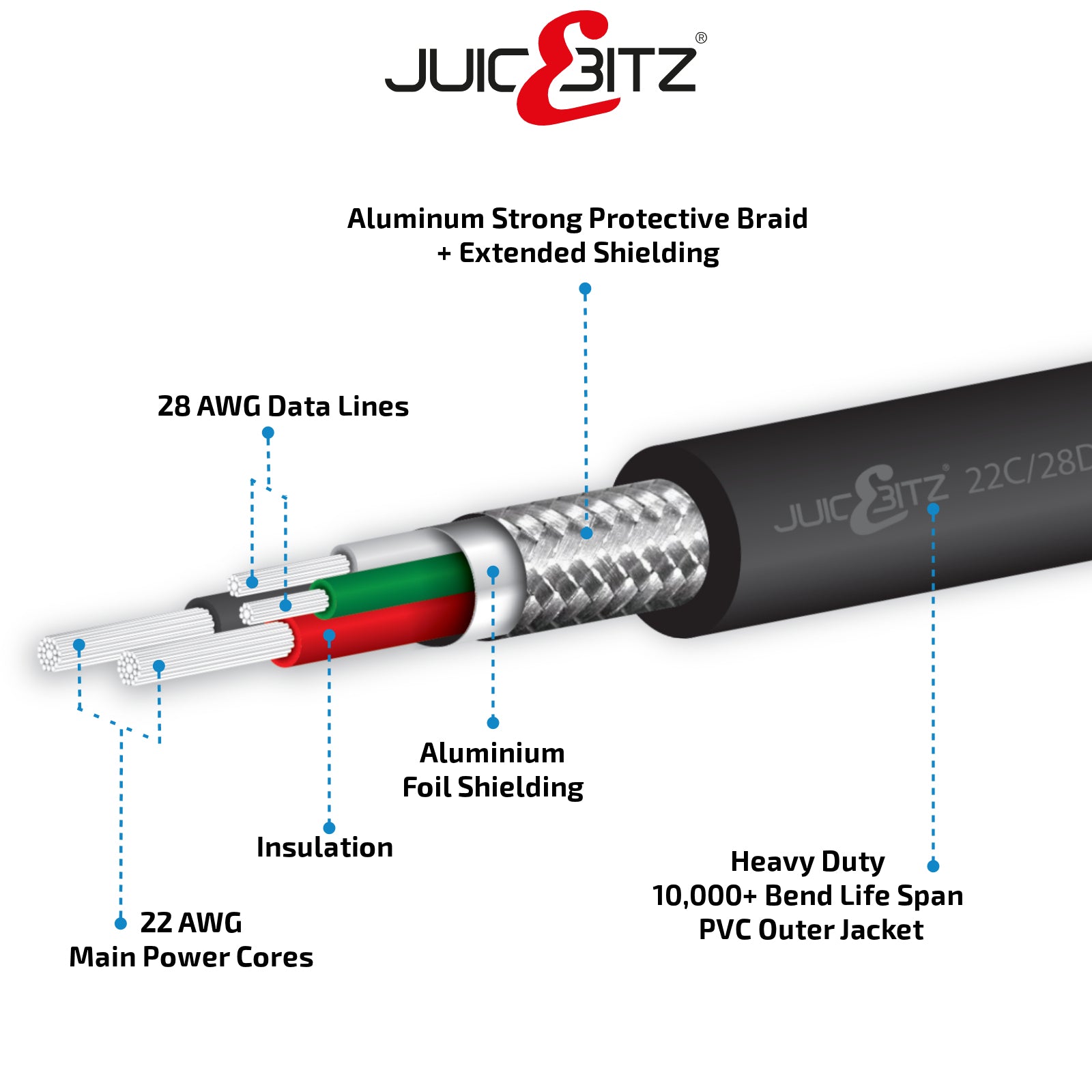

We have specifically designed these with a thick 22AWG Pure Tinned Copper Core (TCu) material for a low resistance, high performance product.
- American Wire Gauge (AWG): 22C/28D (C=Charge, D=Data)
- Connector 1: Male USB 2.0 (Type A) 4 Pin; Gold Plated Pins
- Connector 2: Male USB 2.0 (Mini B) 5 Pin; Gold Plated Pins
- Conductor: Pure Copper, [21/0. 08+/-0.008MM] + 23/0. 18+/-0.008MM]
- Specification: 2725#22/2C+#28/2C+1AB
- Braid Conductor Size: 22*5*0.10mm +/- 0.008mm
- Aluminium Mylar Foil Shield: 15um
- Jacket: PVC 60P, Half Matt
- Diameter: 4.2mm +/- 0.10mm
- Certifications: UKCA, CE/ROHS, FCC
- Fastener Included: Yes, Velcro
- Warranty: 18 Months.
- USB 2.0 Type A Male to USB 2.0 MINI B Male.
- Supports High Speed Data Transfer up to 480Mbps.
- No matter what device you have, if the USB cord detaches from the mains plug this cable is fully compatible with all types of devices.
All manufacturers will state in their manuals what cable is used, or you can find the information on sites such GSM Arena or you can email us firstname.lastname@example.org or call 01723 332269 and one of our advisers will be happy to help.
