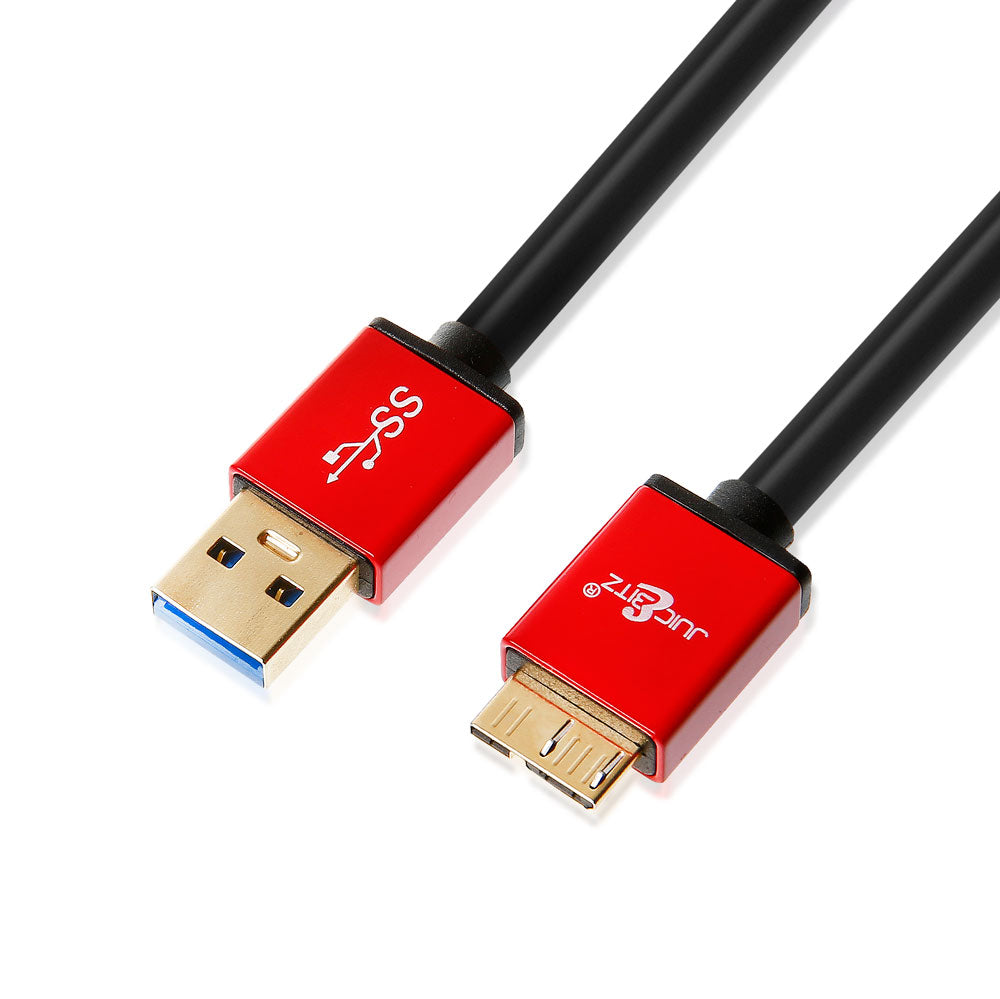

USB 3.0 Type A Male to Male Micro B 9 Pin 5Gbps Cable

Original price £5.99 - Original price £10.99
Original price
£6.99
£5.99 - £10.99
Current price £6.99
SKU OLLV3-AM-MB30-1M
Length: 1m

Premium USB 3.0 Micro B Cable 9 Pin 5Gbps SuperSpeed Data Cable which is widely used in External Portable Hard Drives (HDD) and other stand alone devices.

Suggested Use:

  • Extend your charging capabilities or data transfer from one room to another.
  • Mobile phones and tablets can be operated and charged from a distance.
  • Extending your home network and other wired peripherals, e.g. mice, keyboards, cameras, portable hard-drives etc.
Specifications:
  • American Wire Gauge (AWG): 24C/28D (C=Charge, D=Data)
  • Connector 1: Male USB 3.0 (Type A) 4 Pin; Fully Gold Plated
  • Connector 2: Male USB 3.0 (Micro B) 9 Pin; Fully Gold Plated
  • Conductor: Pure Tinned Copper, 0.54mm [11*0.16 +/-0.008 (1C) | 7*0.127 +/-0.008 (1P)]
  • Compatibility: USB 3.0 and backward compatible with USB 2.0 / 1.1 / 1.0
  • Transfer Rate: SuperSpeed, up to 5 Gbps
  • Braid Conductor Size: 16*5*0.10mm +/- 0.008mm
  • Aluminium Mylar Foil Shield: 15um
  • Jacket: PVC 60P, Half Matt
  • Diameter: 5.5mm +/- 0.1mm
  • Certifications: CE/ROHS, FCC
  • Fastener Included: Yes, Velcro
  • Warranty: 2 Years.

    All manufacturers will state in their manuals what cable is used, or you can find the information on sites such GSM Arena or you can email us hello@juicebitz.co.uk or call 01723 332269 and one of our advisers will be happy to help.
