USB 2.0 Type A Male to Type A Male Power & 480Mbps Data Cable

Original price £4.99 - Original price £9.99
Original price
£4.99 - £9.99
Current price £4.99
Length: 0.5m

Premium Series USB Male to Male A Plug connector lead. Up to 2.4a Power and High Speed Data Transfer up to 480mbps.

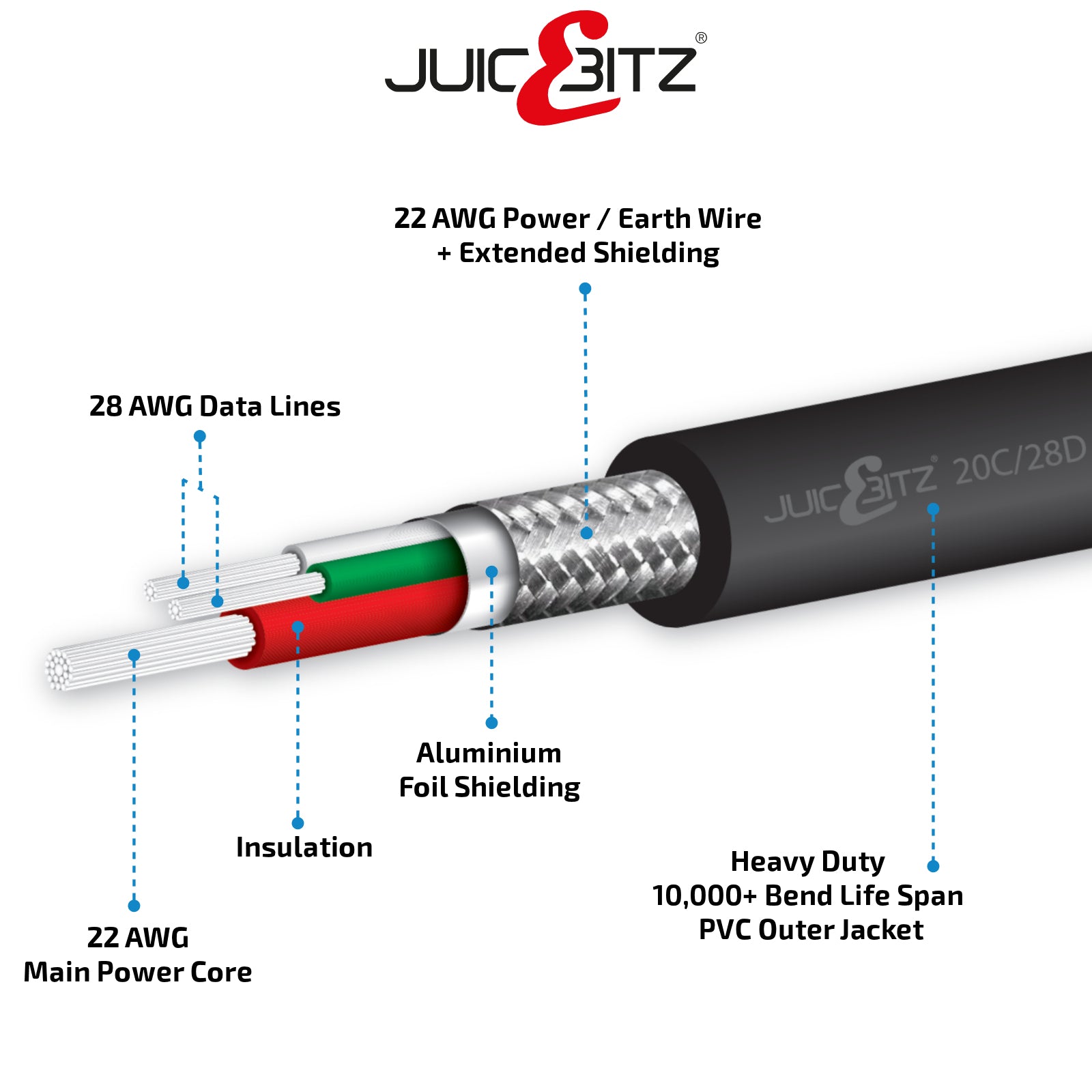

  • American Wire Gauge (AWG): 22C/28D (C=Charge, D=Data)

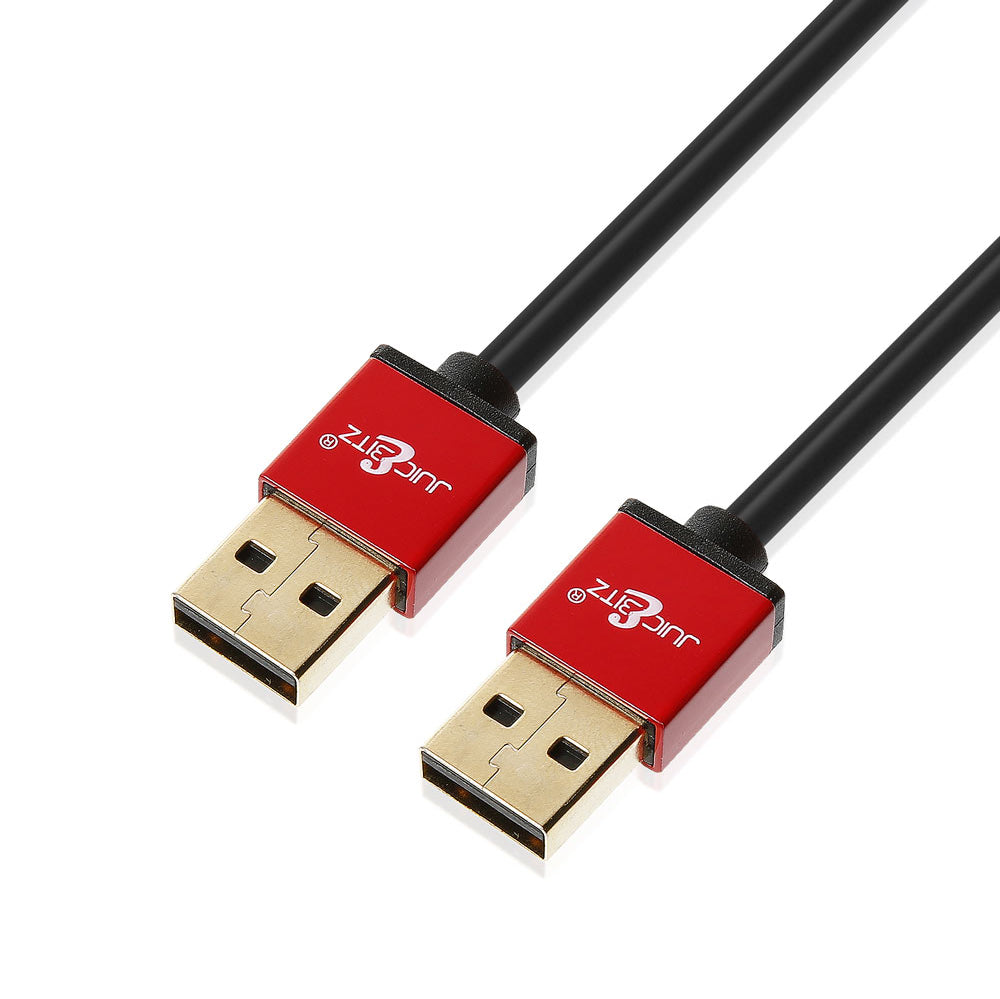

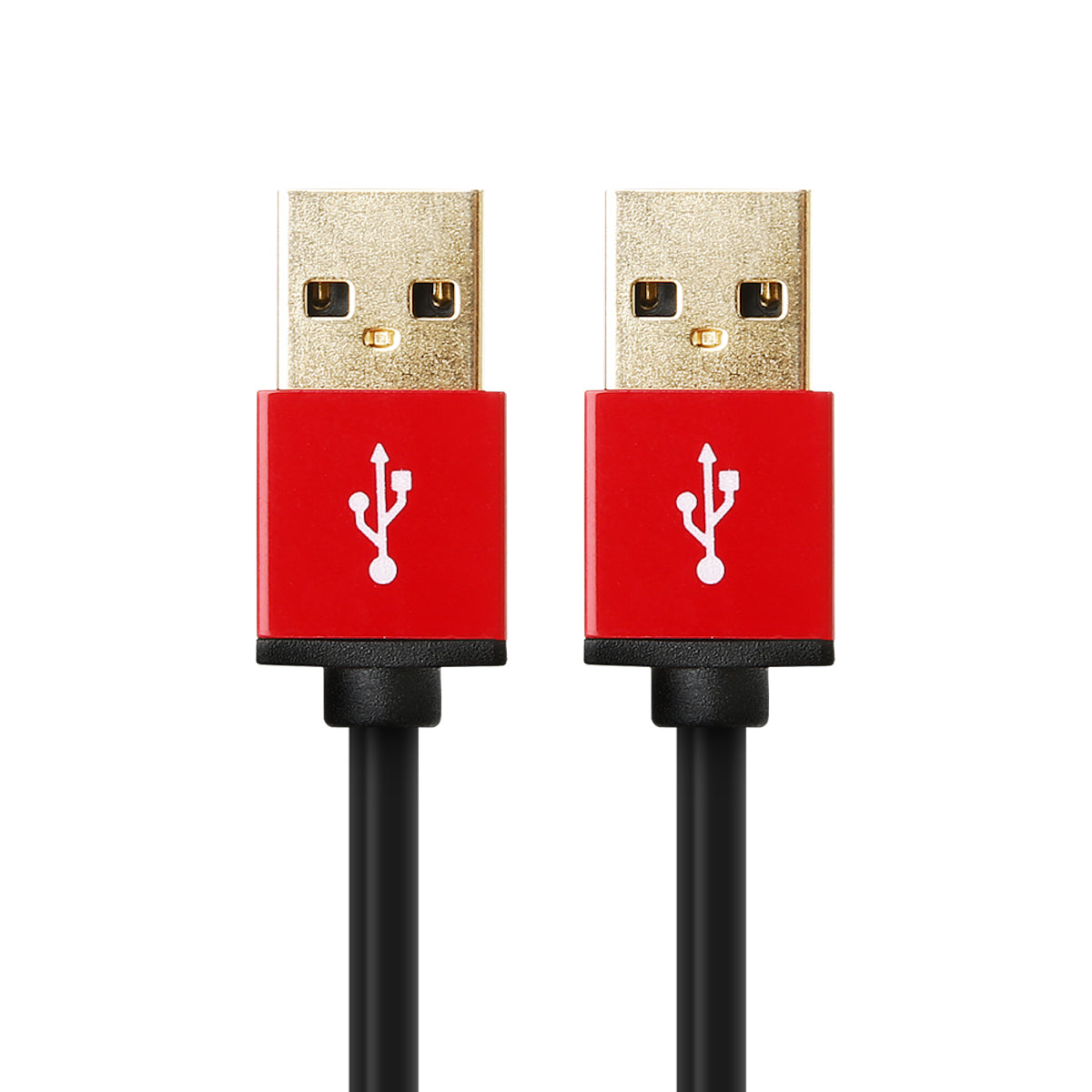

  • Connector 1: Male USB 2.0 (Type A) 4 Pin; Gold Plated Pins
  • Connector 2: Male USB 2.0 (Type A) 4 Pin; Gold Plated Pins
  • Conductor: Pure Tinned Copper, 0.54mm [11*0.16 +/-0.008 (1C) | 7*0.127 +/-0.008 (1P)]
  • Braid Conductor Size: 16*5*0.10mm +/- 0.008mm
  • Aluminium Mylar Foil Shield: 15um
  • Jacket: PVC 60P, Half Matt
  • Diameter: 3.8mm +/- 0.1mm
  • Max Conductor Resistance at 20°C (Ω/Km): 109.2Ω
  • Tensile Strength (Kgf/mm²): 2.11 / =70% of original
  • Certifications: CE/ROHS, FCC

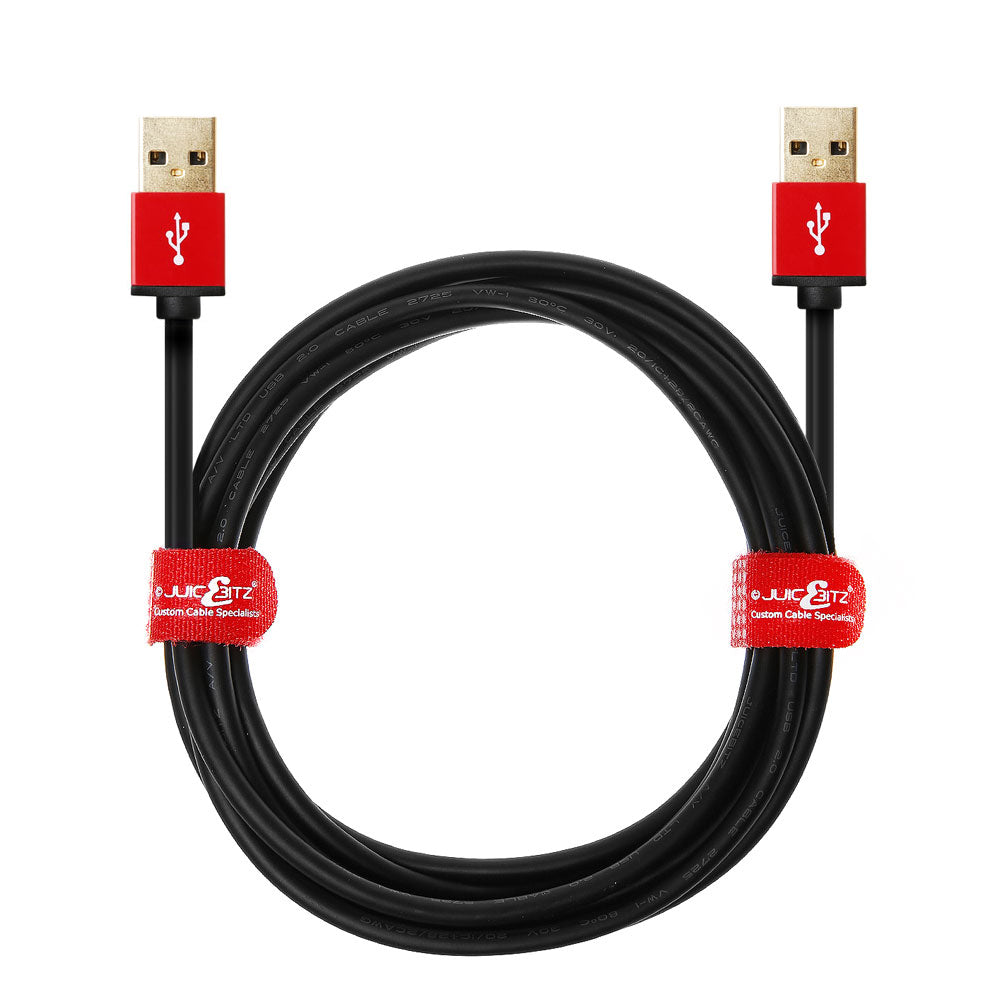

  • Fastener Included: Yes, Velcro
  • Warranty: 2 Years.


    • For some Hard Drives and external devices that require Power, such as Portable Laptop Cooling Stands, Fans and other USB Accessories.
    • One end will connect to the device and the other to your USB Port.
    • This cable is not for connecting one PC to another in order to exchange data as this is not possible and they will not recognise each other.

    All manufacturers will state in their manuals what cable is used, or you can find the information on sites such GSM Arena or you can email us or call 01723 332269 and one of our advisers will be happy to help.
