USB 2.0 Type A Male to Type A Female 480Mbps Extension Cable

Original price £4.99 - Original price £9.99
Original price
£4.99
£4.99 - £9.99
Current price £4.99
SKU OLLV3-AM-AF20-0.5M
Length: 0.5m

A Premium Fully Encased USB 2.0 High Speed 480Mbps Extension Power & Data Cable.

Suggested Use:
  • Extend your charging capabilities or data transfer from one room to another.
  • Mobile phones and tablets can be operated and charged from a distance.
  • Extending your home network and other wired peripherals, e.g. mice, keyboards, cameras, portable hard-drives etc.
Specifications:

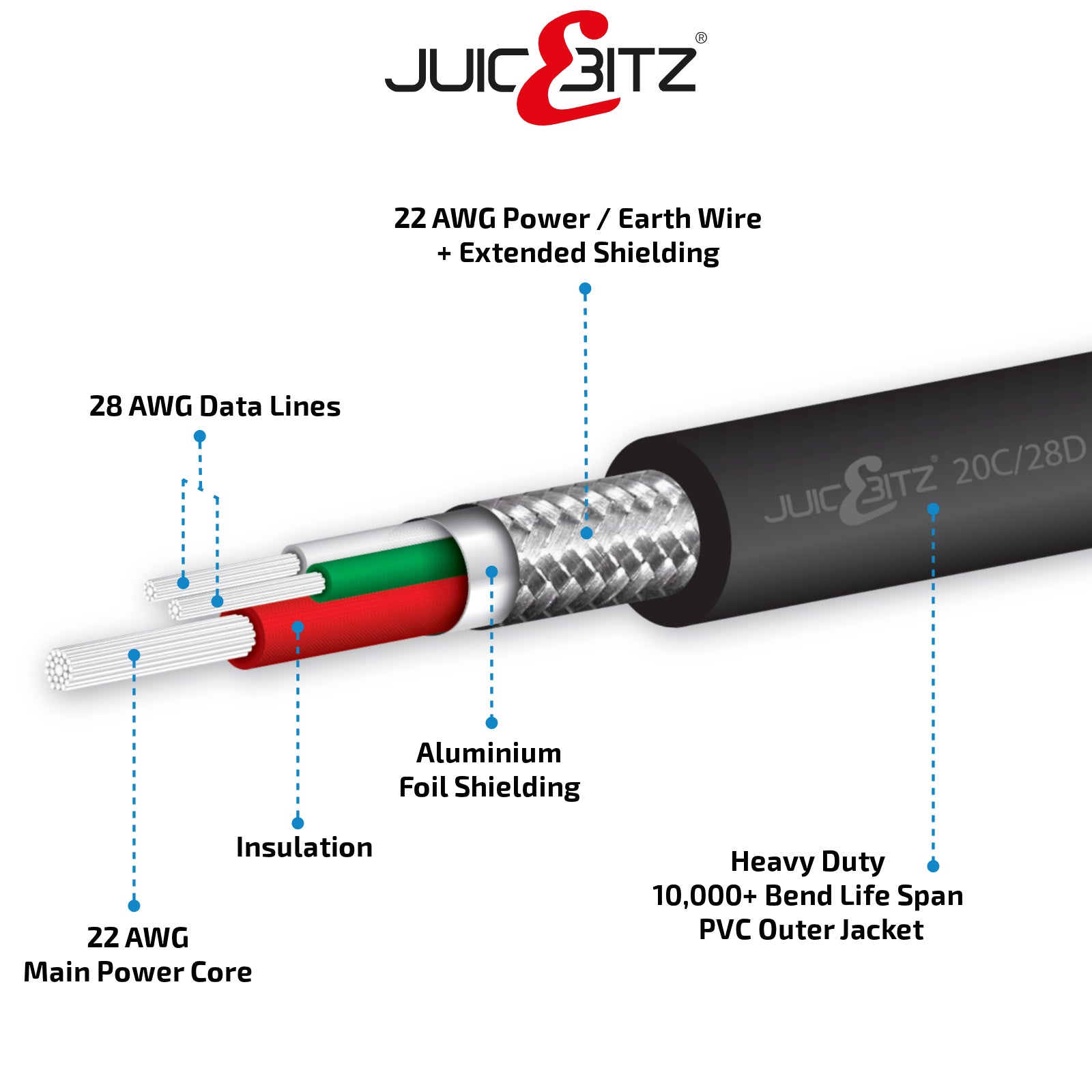

  • American Wire Gauge (AWG): 22C/28D (C=Charge, D=Data)

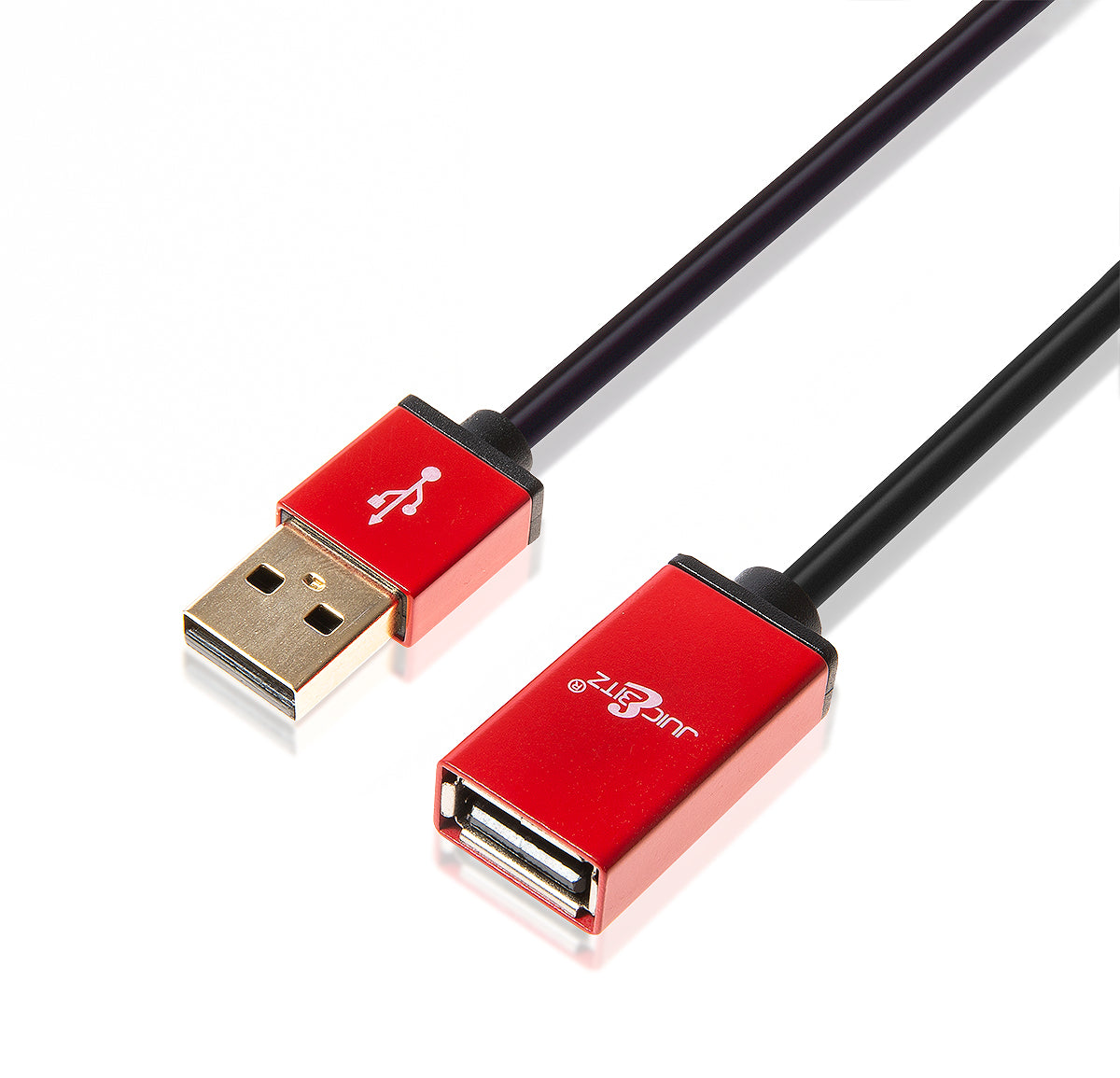

  • Connector 1: Male USB 2.0 (Type A/M) 4 Pin; Fully Gold Plated
  • Connector 2: Female USB 2.0 (Type A/F) 4 Pin; Fully Gold Plated
  • Conductor: Pure Tinned Copper, 0.54mm [11*0.16 +/-0.008 (1C) | 7*0.127 +/-0.008 (1P)]
  • Compatibility: USB 2.0 and backward compatible with USB 1.1 / 1.0
  • Transfer Rate: High Speed, up to 480Mbps
  • Braid Conductor Size: 16*5*0.10mm +/- 0.008mm
  • Aluminium Mylar Foil Shield: 15um
  • Jacket: PVC 60P, Half Matt
  • Diameter: 3.6mm +/- 0.1mm
  • Max Conductor Resistance at 20°C (Ω/Km): 109.2Ω
  • Tensile Strength (Kgf/mm²): 2.11 / =70% of original
  • Certifications: CE/ROHS, FCC

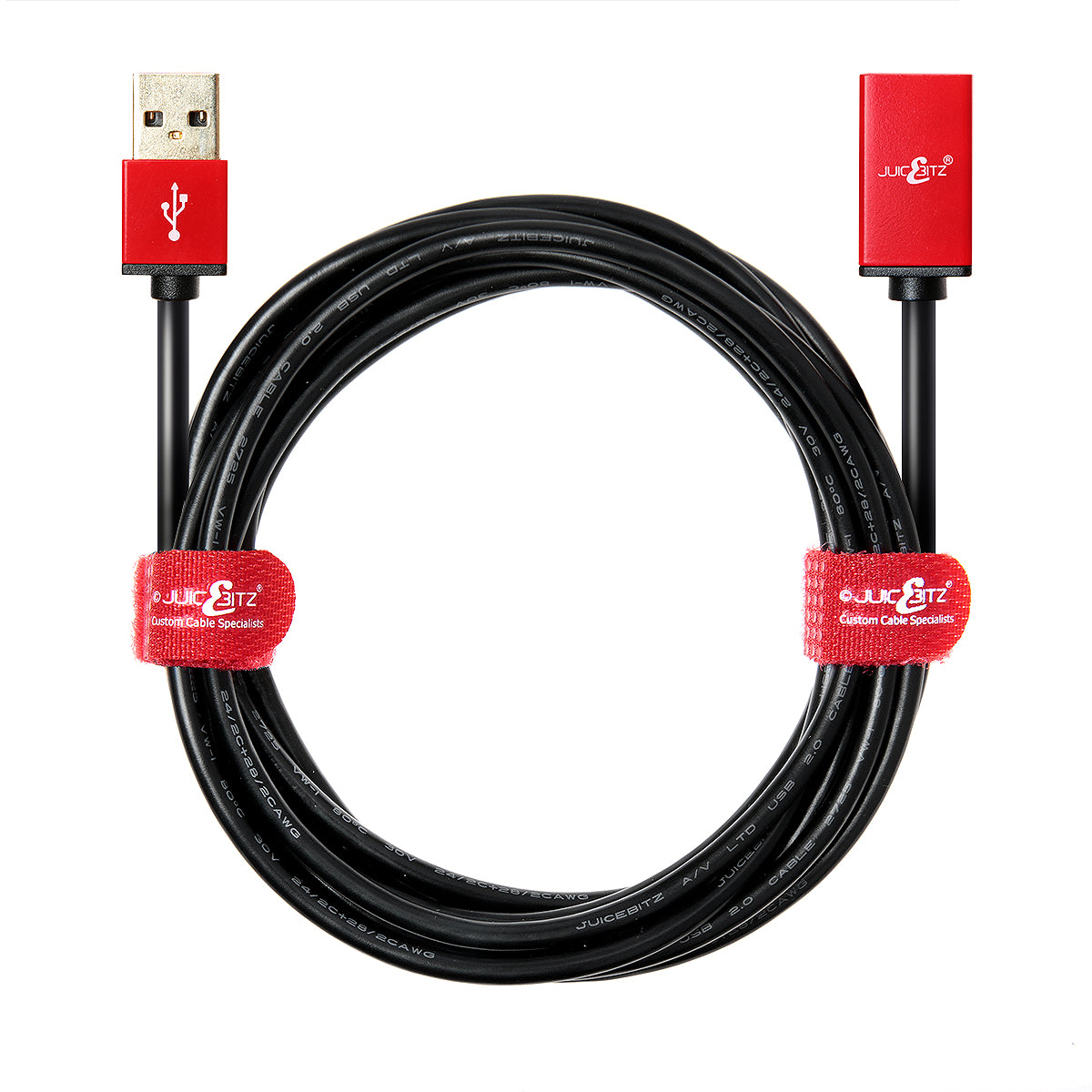

  • Fastener Included: Yes, Velcro
  • Warranty: 2 Years.

    All manufacturers will state in their manuals what cable is used, or you can find the information on sites such GSM Arena or you can email us hello@juicebitz.co.uk or call 01723 332269 and one of our advisers will be happy to help.
