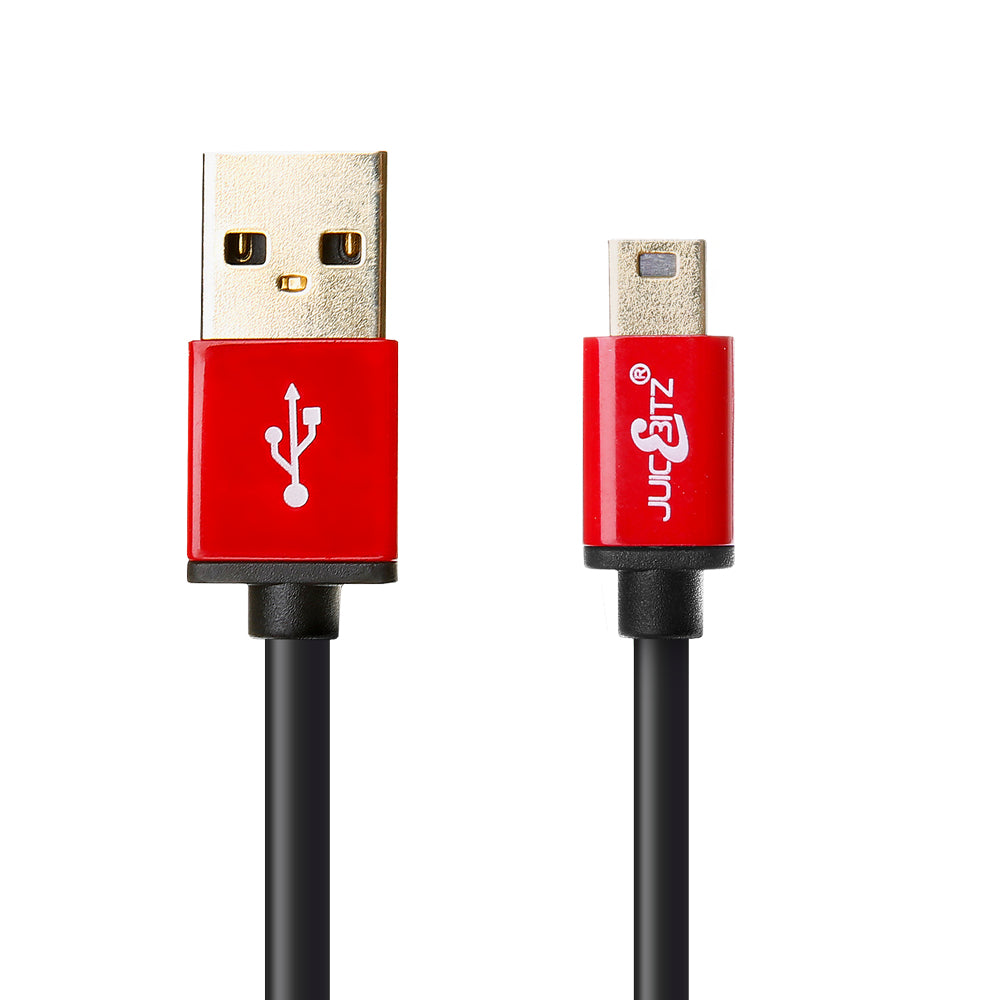

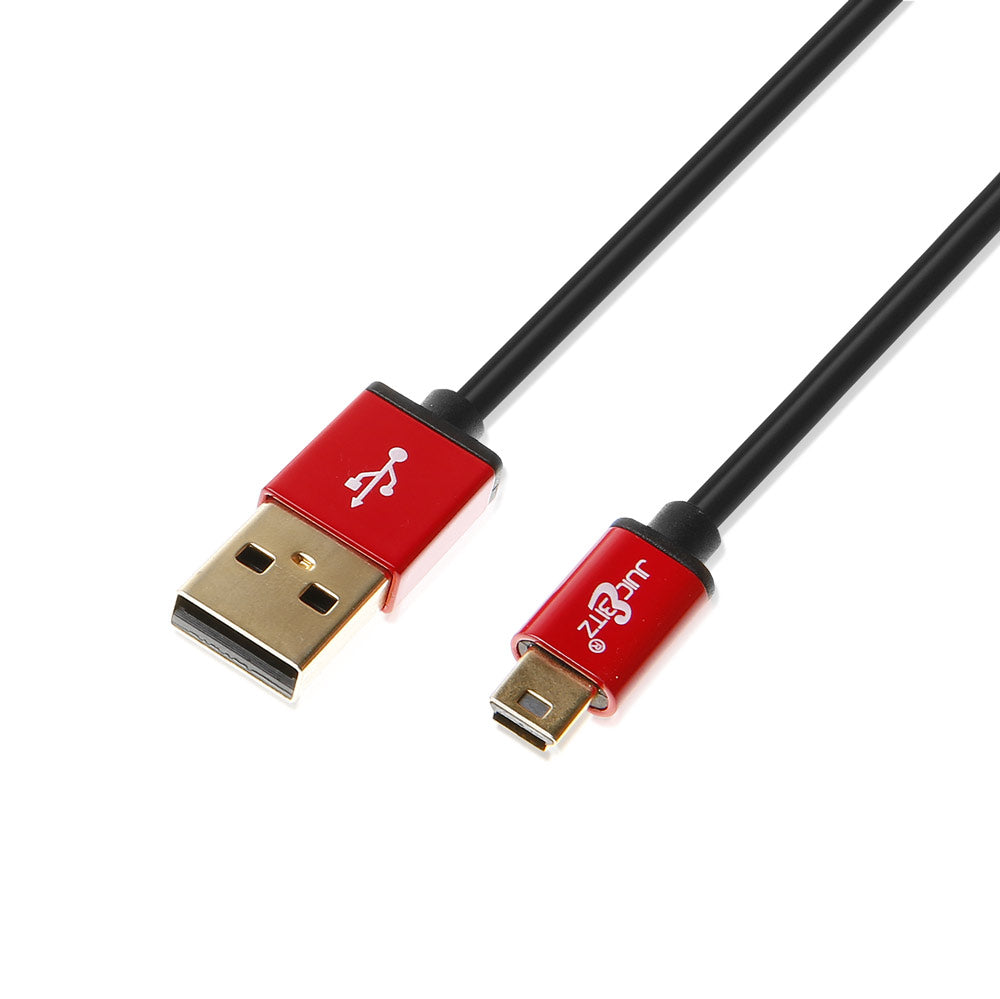

USB 2.0 Type A Male to MINI B 2.4A Power High Speed Data Transfer Cable

Original price £4.99 - Original price £9.99
Original price
£4.99
£4.99 - £9.99
Current price £4.99
SKU OLLV3-AMB-MINI-0.5M
Length: 0.5m

Premium USB 2.0 Type A Male to MINI B High Speed 480Mbps Data Sync & Charger Cable.

Specifications:

  • American Wire Gauge (AWG): 22C/28D (C=Charge, D=Data)
  • Connector 1: Male USB 2.0 (Type A) 4 Pin; Fully Gold Plated
  • Connector 2: Male Mini-USB 5 Pin; Fully Gold Plated
  • Conductor Material: Pure Tinned Copper, [19/0. 08+/-0.008MM] + [21/0. 18+/-0.008MM]
  • Braid Conductor Size: 16*5*0.10mm +/- 0.008mm
  • Aluminium Mylar Foil Shield: 15um
  • Jacket: PVC 60P, Half Matt
  • Diameter: 3.8mm +/- 0.1mm
  • Max Conductor Resistance at 20°C (Ω/Km): 109.2Ω
  • Certifications: CE/ROHS, FCC

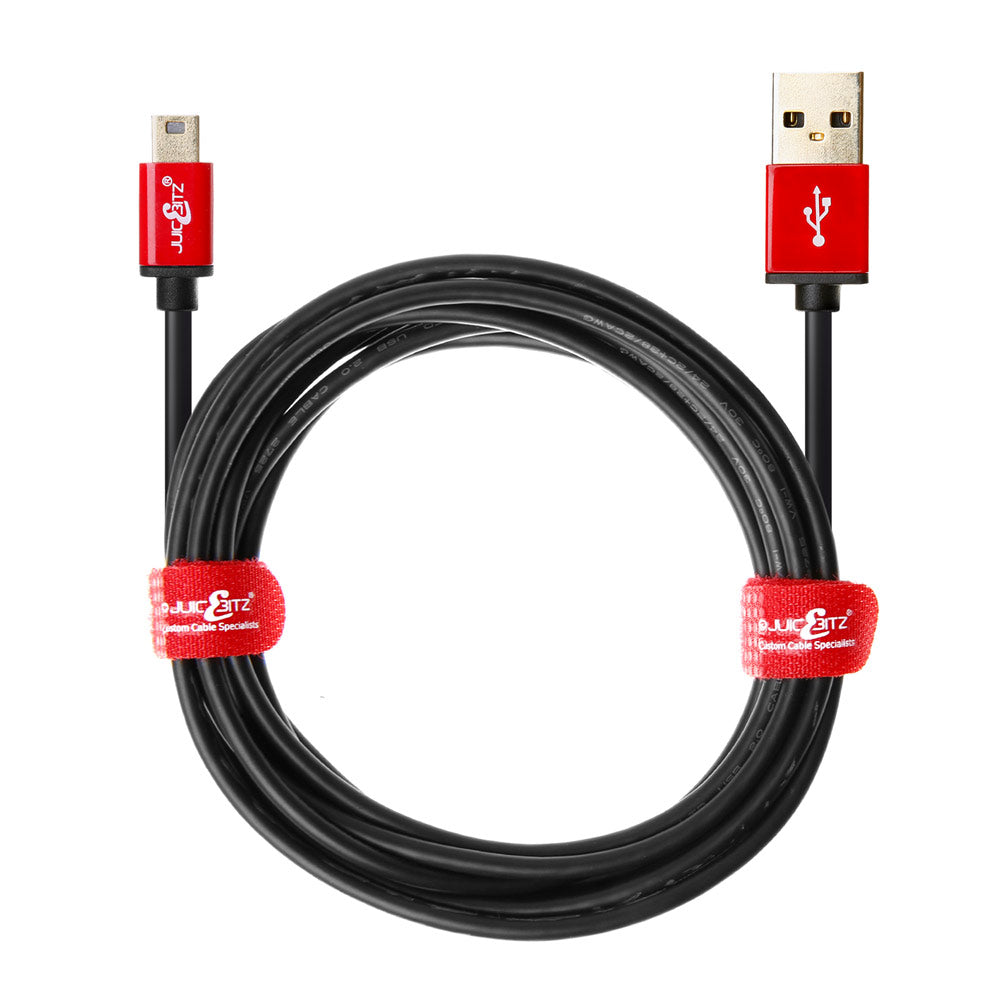

  • Fastener Included: Yes, Velcro
  • Warranty: 2 Years.
    Compatibility:
    • USB 2.0 Type A Male to USB 2.0 MINI B Male
    • Supports High Speed Data Transfer up to 480Mbps
    • Commonly found to be use in digital cameras, satellite navigation systems and dash cams, such as GoPro, Garmin, TomTom, Nextbase and more.

    All manufacturers will state in their manuals what cable is used, or you can visit the above websites to locate the manual to check compatibility first. Or you can email us hello@juicebitz.co.uk or call 01723 332269 and one of our advisers will be happy to help.
