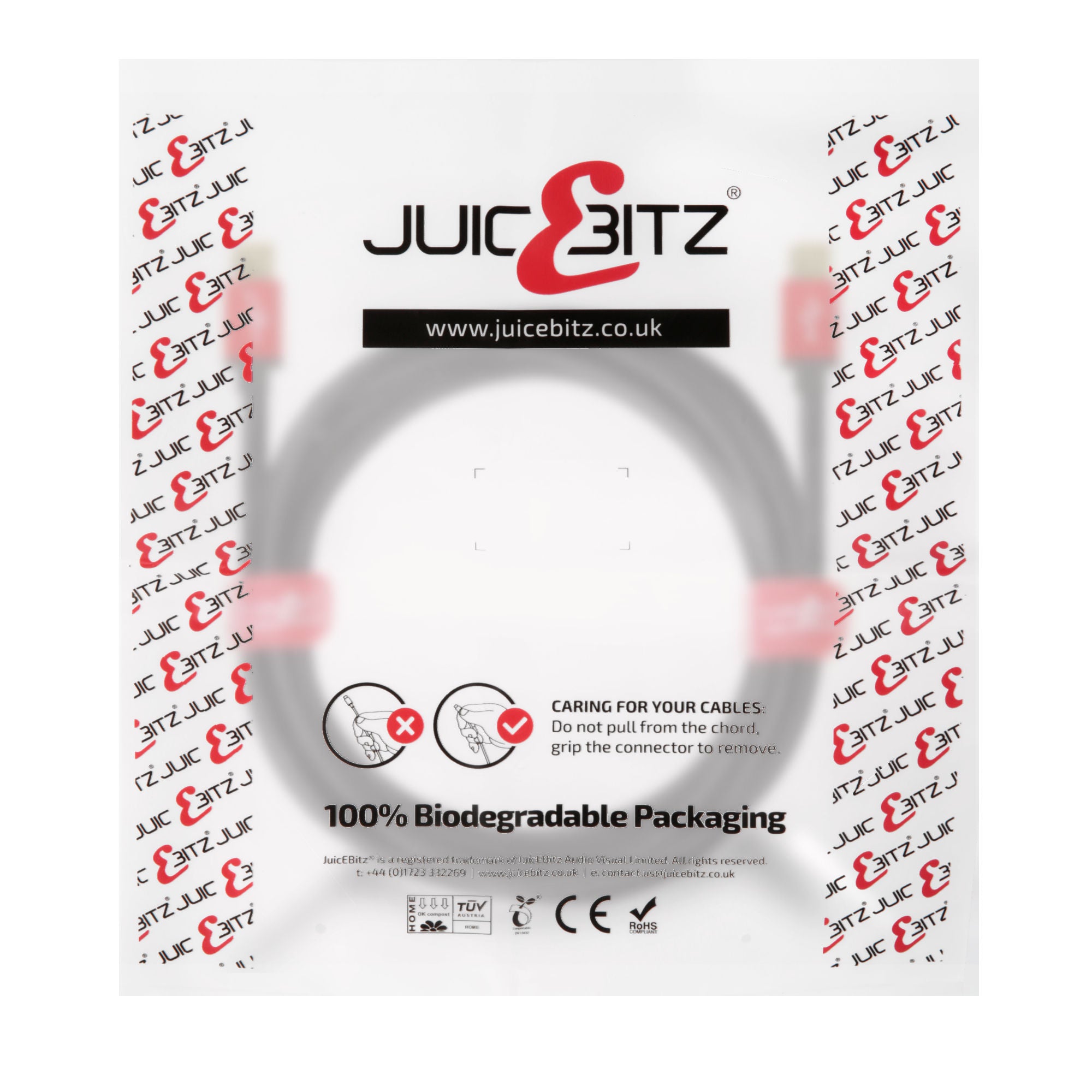

    Braided USB-C to USB-C (Type-C) 3A 18W Fast Charger Data Cable - Black

    Original price £5.99 - Original price £8.99
    Original price
    £5.99
    £5.99 - £8.99
    Current price £5.99
    SKU OLLV3-MB31-MB31-BRA-BLK-0.5M
    Length: 0.5m

    Our Premium 20AWG USB Type C to USB Type C cables are compatible with all USB-C PD Chargers - enabling safe, stable, quick charging of mobile phones and tablets as well as data transfer up to USB 2.0 specifications, 480mbps.

    For more information on USB-C Power Delivery visit http://www.usb.org/developers/powerdelivery

    Primary Features:
    • Supports Standard (5v) & USB-C PD Fast Charging.
    • Premium Quality, Low Resistance 20AWG Pure Tinned Copper Core
    • USB-C Profile: Profile 2, 18W, 3A
    WARNING: Non-certified cables can harm your device.
    These have a 56kΩ Pull Up Resistor and abide to the correct power and data transfer speeds as follows:
    • Connected to USB-C Data Port: 500ma (max), 480mbps (USB2.0 Specification)
    • Direct Charging: Up to 3A (max)
    Specifications:
    • American Wire Gauge (AWG): 20C/28D (C=Charge, D=Data)
    • Connector 1: Male USB Type-C (2.0) 24 Pin; Fully Gold Plated
    • Connector 2: Male USB Type-C (2.0) 24 Pin; Fully Gold Plated
    • Conductor: Pure Tinned Copper
    • Aluminium Mylar Foil Shield: 15um
    • Jacket: PVC 60P, Half Matt
    • Outer Braid: Woven Nylon, 0.2mm
    • Diameter: 4.2mm +/- 0.1mm
    • Max Conductor Resistance at 20°C (Ω/Km): 109.2Ω
    • Tensile Strength (Kgf/mm²): 2.11 / =70% of original
    • Certifications: UKCA, CE/ROHS, FCC
    • USB Electronic Testing: (Cert#11632/16-09-EAX-003-E00)
    • Pull Up Resistor: Yes, 56kΩ
    • Fastener Included: Yes, Velcro
    • Warranty: 2 Years.
      Compatibility:

      All manufacturers will state in their manuals what cable is used, or you can find the information on sites such GSM Arena or you can email us hello@juicebitz.co.uk or call 01723 332269 and one of our advisers will be happy to help.
