22AWG Micro USB 2.0 Female Extension to Male Micro B Cable - Black

Original price £4.99 - Original price £9.99
Original price
£4.99
£4.99 - £9.99
Current price £4.99
SKU TTV1-MBF-AMB-0.5M
Length: 0.5m

Extremely well suited extension cables, for powering up Amazon Fire Sticks, Google Chromecast and other similar Android TV Dongles.

Fully compatible with all USB 2.0 Micro-B devices, for power and data transfer.

22AWG USB Micro B Female to Micro B Male extension cables offer a different approach to extension leads from standard Type A to Type A versions. Perfect for use with your original manufacturers cable to extend its range.

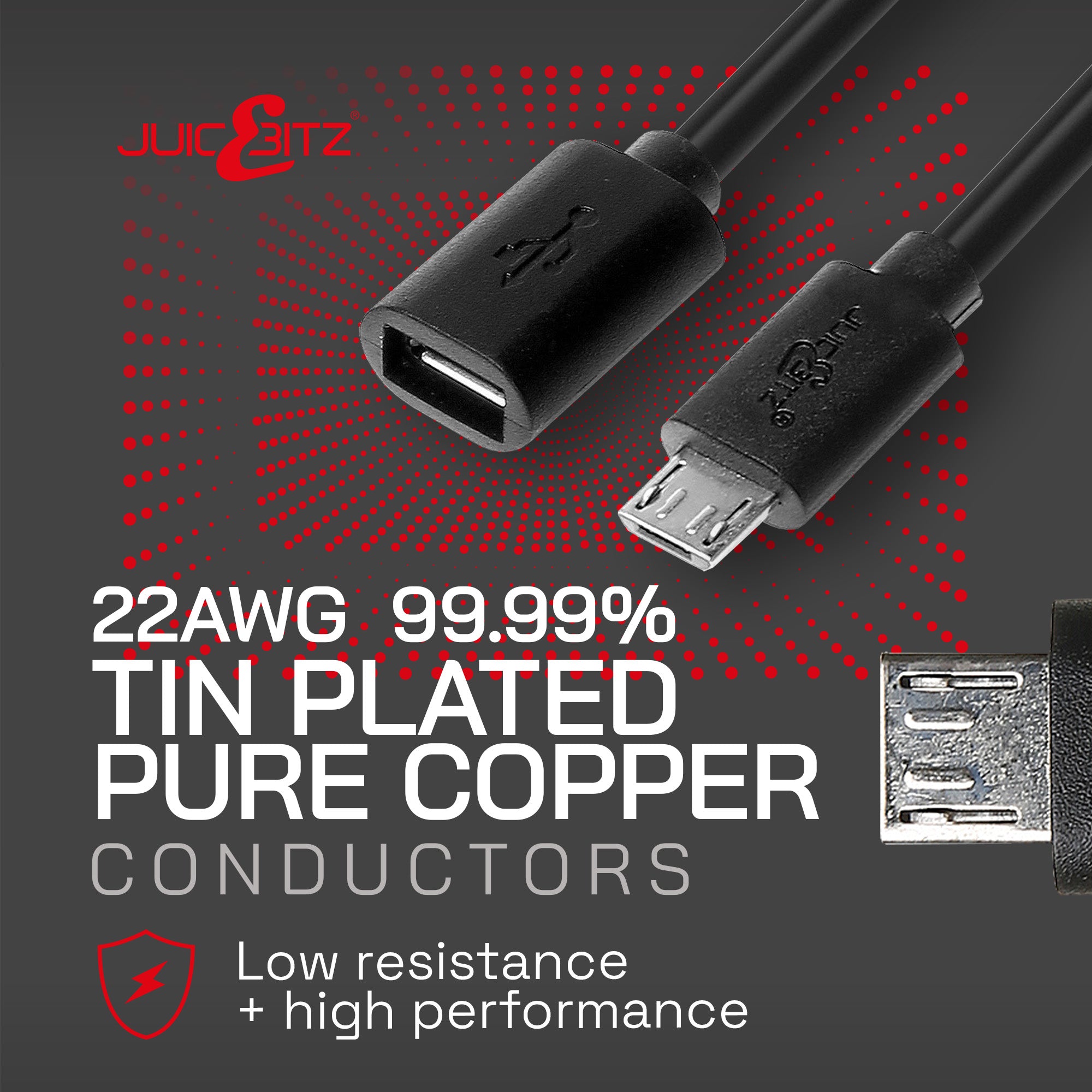

We have specifically designed these with a thick 22AWG Pure Tinned Copper Core (TCu) material for a low resistance, high performance product.

Specifications:

  • American Wire Gauge (AWG): 22C/28D (C=Charge, D=Data)

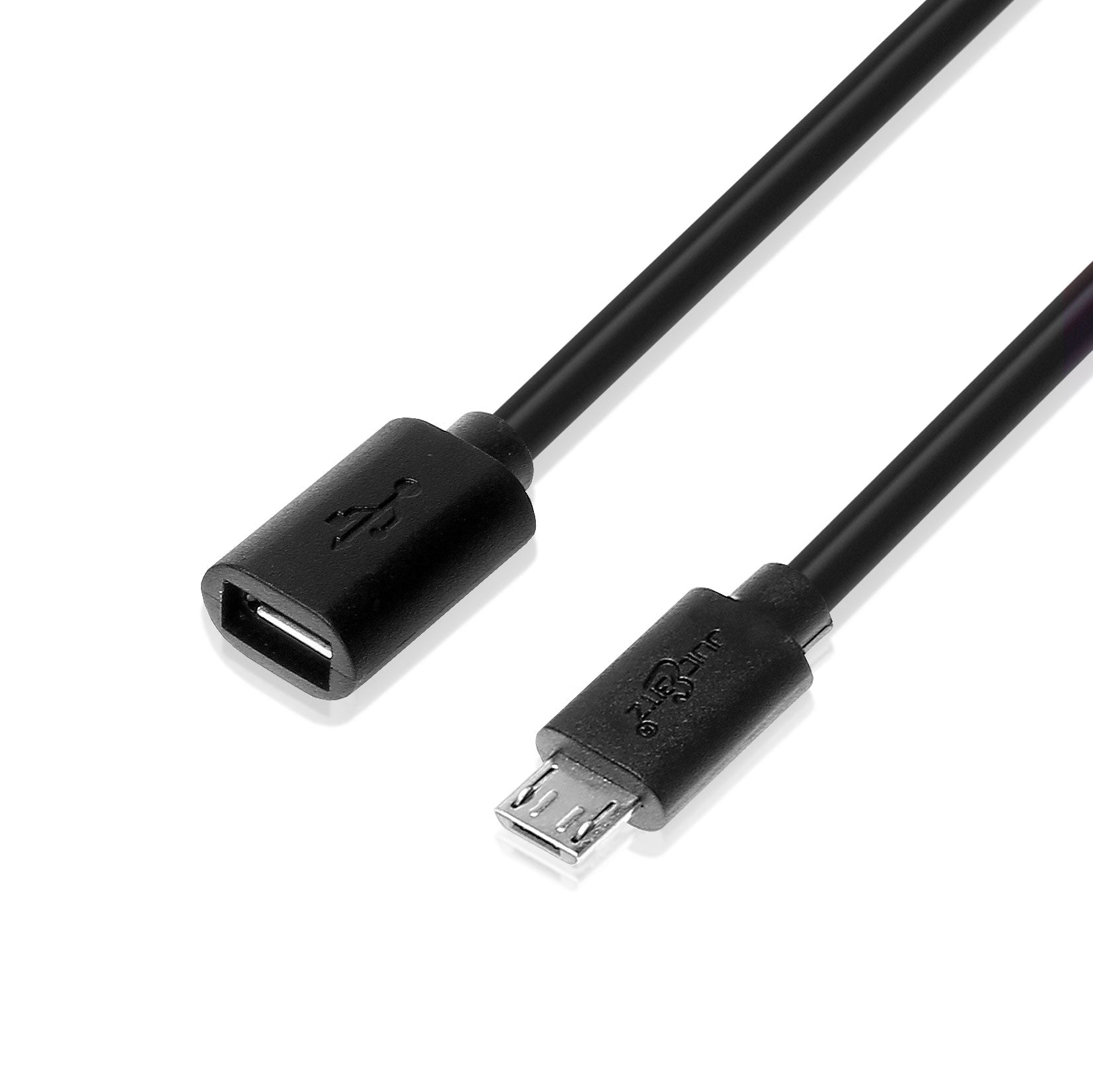

  • Connector 1: Female USB 2.0 (Micro B) 4 Pin; Gold Plated Pins
  • Connector 2: Male Micro USB 2.0 (Micro B) 4 Pin; Gold Plated Pins
  • Conductor: Pure Copper, [19/0. 08+/-0.008MM] + [21/0. 18+/-0.008MM]
  • Specification: 2725#28/2C+#22/2C+AB
  • Braid Conductor Size: 16*5*0.10mm +/- 0.008mm
  • Aluminium Mylar Foil Shield: 15um
  • Jacket: PVC 60P, Half Matt
  • Diameter: 4.2mm +/- 0.1mm
  • Certifications: CE/ROHS, FCC
  • Fastener Included: Yes, Velcro
  • Warranty: 18 Months.

Compatibility:

  • Supports High Speed Data Transfer up to 480Mbps.
  • Universal: Micro USB Female to Micro USB Male.
