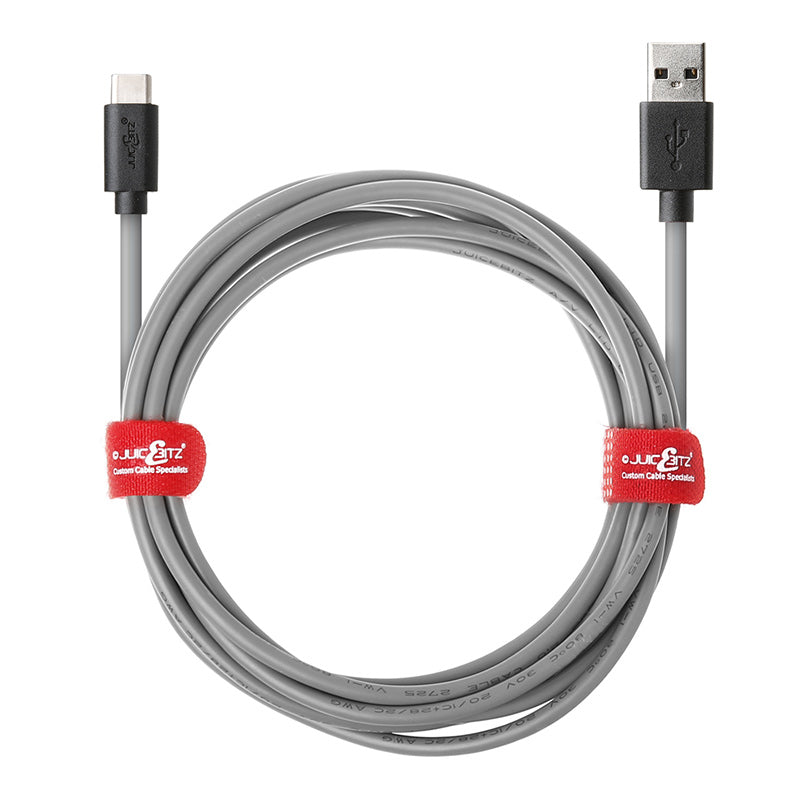

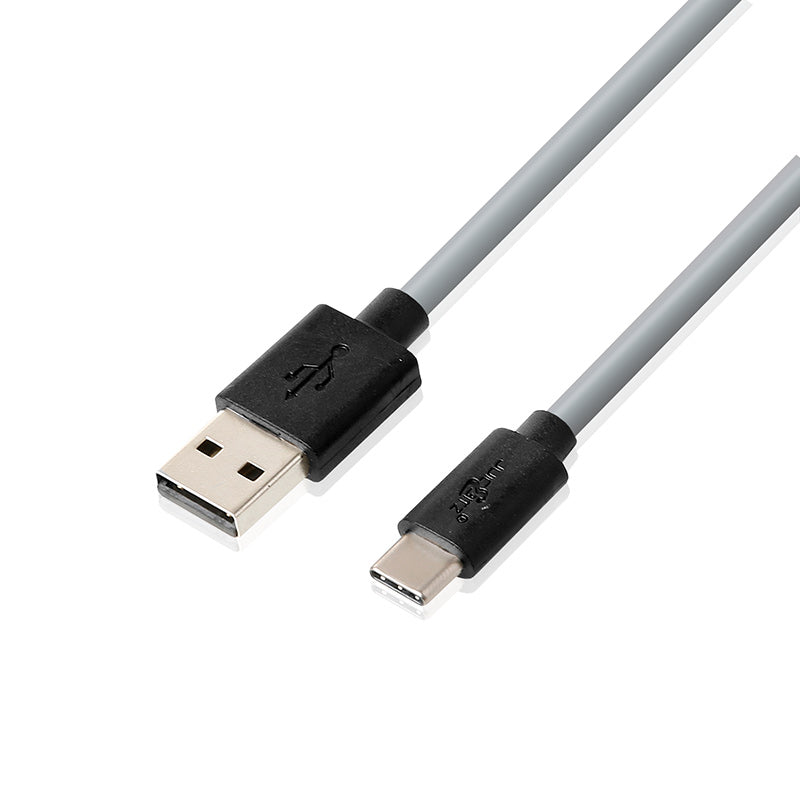

USB 2.0 Male to USB-C (Type C) 20AWG, 3A Fast Charger Data Cable - Grey
Core Series Heavy-Duty Rubber Injection Moulded 20AWG USB 2.0 Type A to USB Type C cables are compatible with Qualcomm® Quick Charge™, Samsung Adaptive Fast Charging (AFC), as well as being 100% compatible with standard 5V charging - enabling safe, stable, quick charging of mobile phones and tablets as well as data transfer up to USB 2.0 specifications, 480mbps.
For more information on USB-C Power Delivery visit http://www.usb.org/developers/powerdelivery
- Supports Standard (5v) & USB Fast Charging (9v/12v)
- Premium Quality, Low Resistance 20AWG Pure Tinned Copper Core
USB-C Profile: Profile 2, 18W, 3A
These have a 56kΩ Pull Up Resistor and abide to the correct power and data transfer speeds as follows:
- Connected to USB-C Data Port: 500ma (max), 480mbps (USB2.0 Specification)
Direct Charging: Up to 3A (max)
American Wire Gauge (AWG): 20C/28D (C=Charge, D=Data)
- Connector 1: Male USB Type-A (2.0) 4 Pin; Gold Plated Pins
- Connector 2: Male USB Type-C (2.0) 24 Pin; Gold Plated Pins
- Conductor: Pure Tinned Copper
- Aluminium Mylar Foil Shield: 15um
- Jacket: PVC 60P, Half Matt
- Diameter: 4.0mm +/- 0.1mm
- Max Conductor Resistance at 20°C (Ω/Km): 109.2Ω
- Tensile Strength (Kgf/mm²): 2.11 / =70% of original
- Certifications: CE/ROHS, FCC
- USB Electronic Testing: (Cert#11632/16-09-EAX-003-E00)
- Pull Up Resistor: Yes, 56kΩ
- Fastener Included: Yes, Velcro
- Warranty: 18 Months.
- USB 2.0 Type A Male to USB-C (Type C), (rev1.0)
- All devices that support Standard 5V or 9V/12V Adaptive Fast Charging (Qualcomm® Quick Charge™ 2.0 or higher) with a USB-C interface
- Some recognisable and most recent models include the Samsung Galaxy Series, Google Pixel Phones, LG Phones, Huawei, Sony Xperia, Apple iPad Pro and more.
