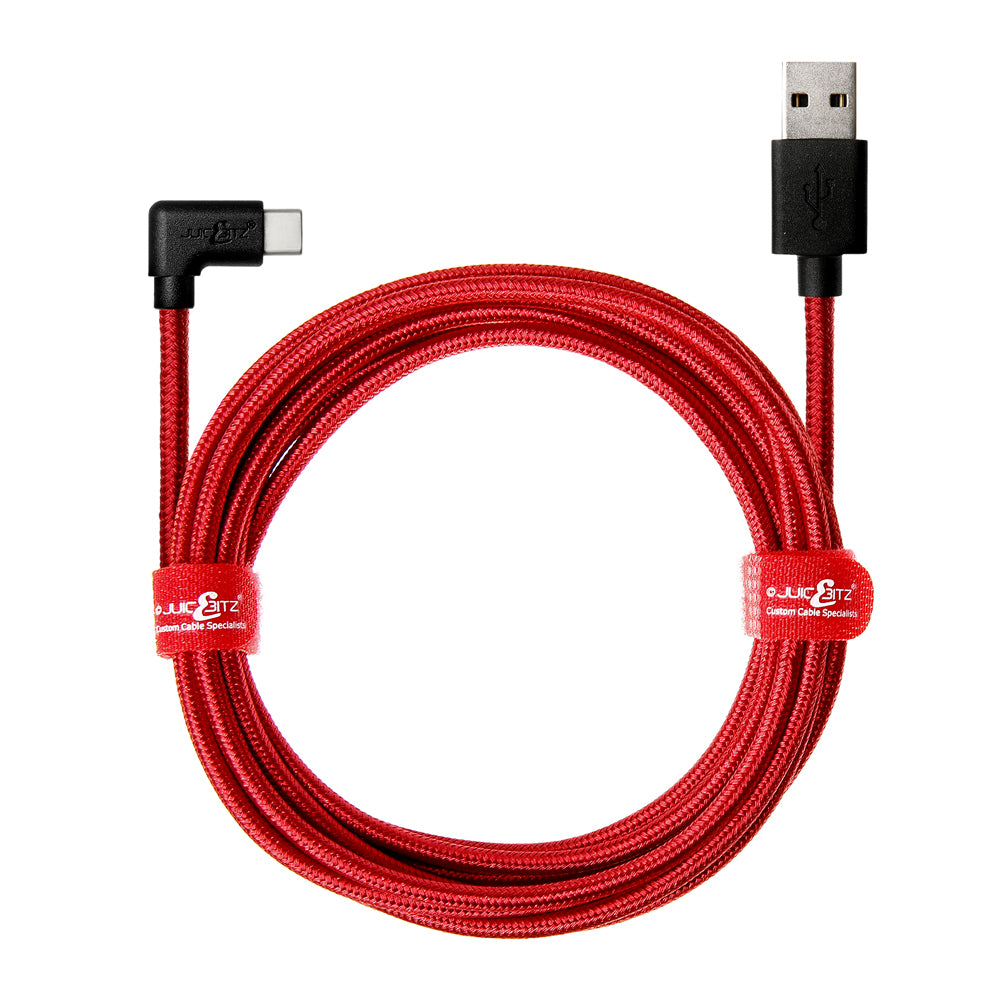

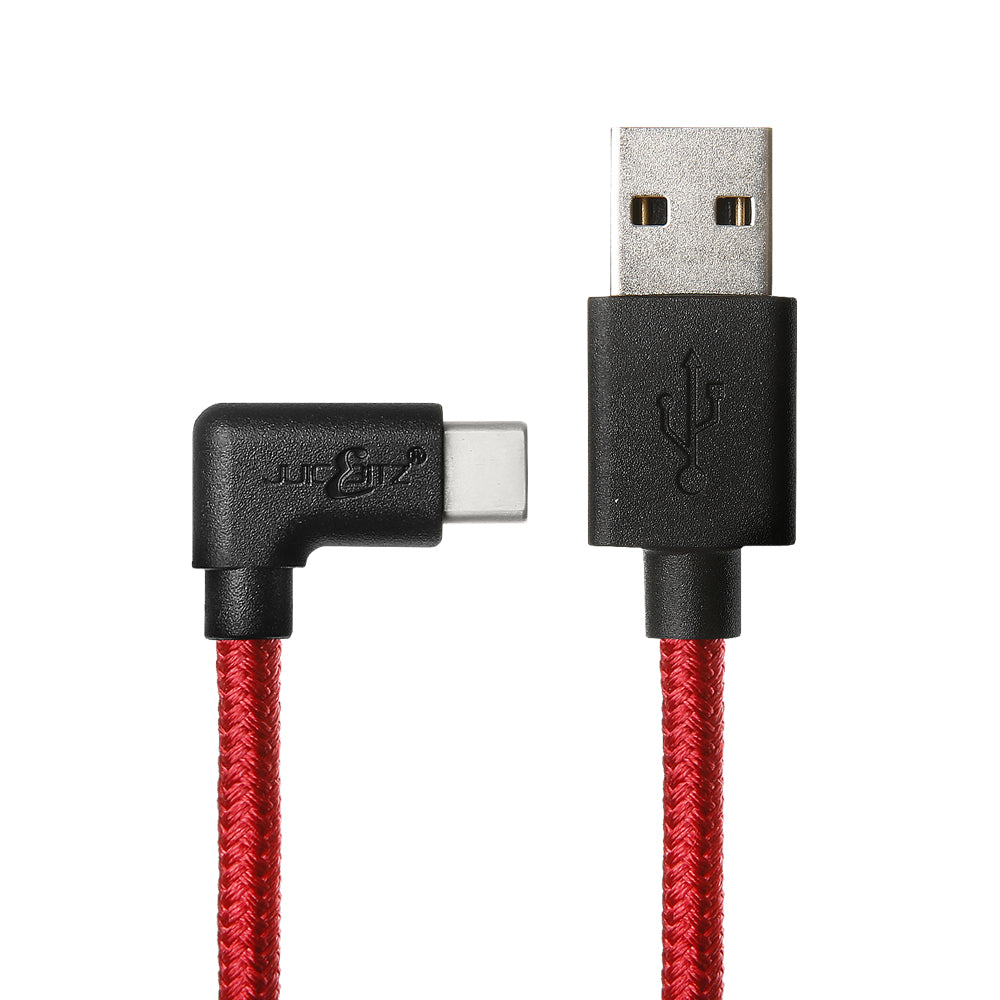

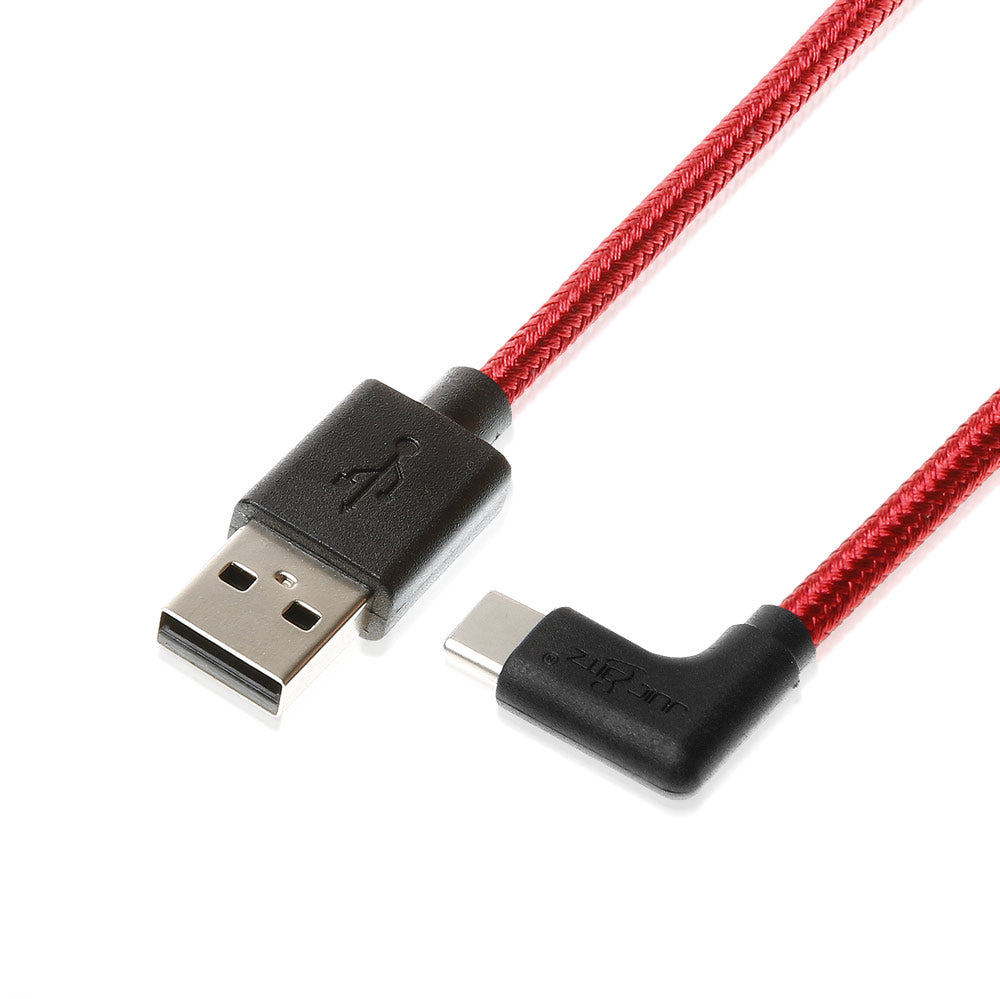

Braided USB 2.0 Male to Angled USB-C (Type C) 20AWG, 3A Fast Charger Data Cable - Red

Original price £4.99 - Original price £8.99
Original price
£4.99
£4.99 - £8.99
Current price £4.99
SKU TTV1-AM20-RAMB31-BRA-LTD-0.5M
Length: 0.5m

Core Series Heavy-Duty Rubber Injection Moulded 20AWG USB 2.0 Type A to USB Type C cables are compatible with Qualcomm® Quick Charge™, Samsung Adaptive Fast Charging (AFC), as well as being 100% compatible with standard 5V charging - enabling safe, stable, quick charging of mobile phones and tablets as well as data transfer up to USB 2.0 specifications, 480mbps.

This particular model features an external nylon braid, to increase cable protection and overall tensile strength.

For more information on USB-C Power Delivery visit http://www.usb.org/developers/powerdelivery

Primary Features:
  • Supports Standard (5v) & USB Fast Charging (9v/12v)
  • Premium Quality, Low Resistance 20AWG Pure Tinned Copper Core
  • USB-C Profile: Profile 2, 18W, 3A
WARNING: Non-certified cables can harm your device.
These have a 56kΩ Pull Up Resistor and abide to the correct power and data transfer speeds as follows:
  • Connected to USB-C Data Port: 500ma (max), 480mbps (USB2.0 Specification)
  • Direct Charging: Up to 3A (max)
Specifications:
  • American Wire Gauge (AWG): 20C/28D (C=Charge, D=Data)
  • Connector 1: Male USB Type-A (2.0) 4 Pin; Gold Plated Pins
  • Connector 2: Male Angled USB Type-C (2.0) 24 Pin; Gold Plated Pins
  • Conductor: Pure Tinned Copper
  • Aluminium Mylar Foil Shield: 15um
  • Jacket: PVC 60P, Half Matt
  • Outer Braid: Woven Nylon, 0.2mm
  • Diameter: 4.2mm +/- 0.1mm
  • Max Conductor Resistance at 20°C (Ω/Km): 109.2Ω
  • Tensile Strength (Kgf/mm²): 2.11 / =70% of original
  • CertificationsCE/ROHS, FCC
  • USB Electronic Testing: (Cert#11632/16-09-EAX-003-E00)
  • Pull Up Resistor: Yes, 56kΩ
  • Fastener Included: Yes, Velcro
  • Warranty: 18 Months.
    Compatibility:

    All manufacturers will state in their manuals what cable is used, or you can find the information on sites such GSM Arena or you can email us hello@juicebitz.co.uk or call 01723 332269 and one of our advisers will be happy to help.
